Stainless Steel Spring Leaf Roll-in Nut for T Slot Aluminium Profile
Product Summary
As a leading aluminum profile manufacturer, we present the Stainless Steel Spring Leaf Roll-in Nut, designed for seamless integration into T-slot aluminum profiles. This innovative fastener offers a quick and secure method for attaching components to aluminum framing systems. The spring leaf mechanism allows the nut to be easily rolled into the T-slot, where it automatically aligns and locks into position, eliminating the need for disassembly of the profile structure. Made from high-quality carbon steel with a galvanized finish (C grade), it provides excellent corrosion resistance and durability. The nut is available in multiple thread sizes (M4, M5, M6, M8, M10) and slot widths (8mm, 10mm), accommodating various profile dimensions. Its design ensures a tight fit and reliable holding force, making it ideal for industrial machinery, automation equipment, and structural framing applications. The spring leaf roll-in nut simplifies assembly, reduces labor time, and enhances the overall efficiency of your aluminum profile projects.
Specification Table
| Specification | Details |
|---|---|
| Material | Carbon Steel, Galvanized (C Grade) |
| Thread Sizes Available | M4, M5, M6, M8, M10 |
| Slot Width Compatibility | 8mm, 10mm |
| Length Options | 30mm, 40mm, 45mm |
| Finish | Galvanized for Corrosion Resistance |
Frequently Asked Questions (FAQ)
Q1: How does the spring leaf roll-in nut install into the T-slot?
A: Simply insert the nut into the T-slot opening and push it along the channel. The spring leaf compresses to allow easy rolling, then expands to lock the nut in place, ensuring a secure fit without tools.
Q2: Is this nut compatible with all T-slot aluminum profiles?
A: It is designed for standard T-slots with 8mm or 10mm slot widths. Check your profile's slot dimensions and choose the appropriate nut size for optimal performance.
Q3: Can the spring leaf roll-in nut be reused?
A: Yes, it can be removed and reinstalled multiple times. However, ensure the spring leaf remains intact and not deformed for consistent holding strength.

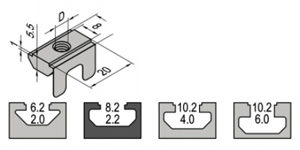

Assembly diagram
MKTSF-SRINTAB-C-α-β-γ
| 4 | Material |  |
 |
| Spring leaf roll in nut |
carbon steel & galvanized – C |
MKTSF-SRINTAB-C-M4-8-30 MKTSF-SRINTAB-C-M5-8-30 MKTSF-SRINTAB-C-M6-8-30 MKTSF-SRINTAB-C-M4-8-40 MKTSF-SRINTAB-C-M5-8-40 MKTSF-SRINTAB-C-M6-8-40 MKTSF-SRINTAB-C-M8-8-40 |
MKTSF-SRINTAB-C-M5-10-45 |
