MK-8-80160-X

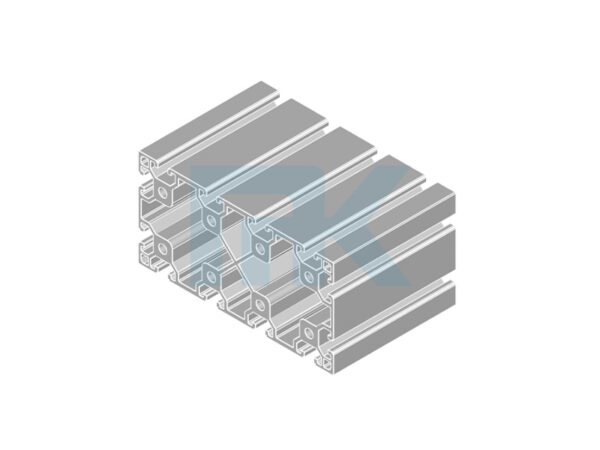

As a leading aluminum profile manufacturer, we proudly present the MK-8-80160-X, a high-strength 80x160mm T-slot aluminum extrusion designed for heavy-duty industrial framing, machine guards, workstations, and automation systems. Crafted from premium Aluminum Alloy 6063-T5 and finished with a 0-15μm anodized coating, this profile offers exceptional corrosion resistance and a sleek silver appearance. Its 12-slot configuration provides maximum flexibility for modular assembly, while the impressive moment of inertia (Lx: 240.86 cm⁴, Ly: 820.60 cm⁴) and resistance values (Wx: 60.22 cm³, Wy: 102.58 cm³) ensure outstanding structural rigidity and load-bearing capacity. With a mass of 9.173 kg/m, this profile delivers the perfect balance of strength and weight for demanding applications. Ideal for building robust frames, linear motion systems, and custom structures, the MK-8-80160-X is a reliable choice for engineers seeking precision and durability.
Frequently Asked Questions
Q: What is the maximum load capacity of the MK-8-80160-X profile?
A: The load capacity depends on the specific application and support structure. However, with a moment of inertia Ly of 820.60 cm⁴ and Wy of 102.58 cm³, this profile is designed for heavy-duty use and can typically support several hundred kilograms over short spans. We recommend consulting our engineering team for precise load calculations based on your setup.
Q: Can this profile be cut and machined to custom lengths?
A: Yes, as a manufacturer, we offer custom cutting, drilling, and machining services for the MK-8-80160-X. We can provide precise lengths and pre-drilled holes to meet your project requirements, ensuring fast assembly and reduced waste.
Q: What accessories are compatible with this 80 series profile?

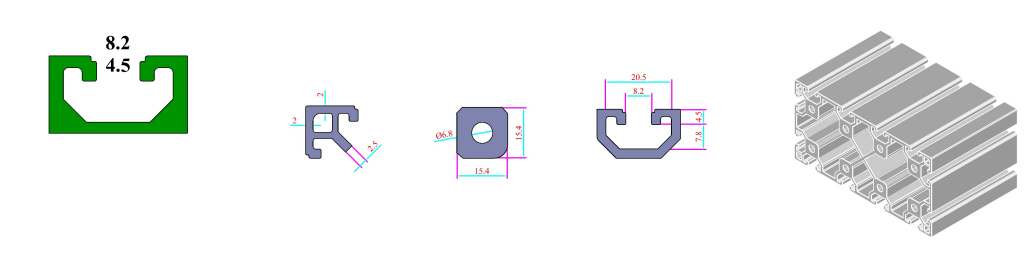

A: The MK-8-80160-X is part of our 80 series, which is compatible with a wide range of accessories including T-nuts, brackets, corner connectors, hinge joints, and fasteners. All standard 8mm slot accessories will work seamlessly, allowing for versatile and modular construction.
| Specification | विवरण |
|---|---|
| Profile Group | 80 Series |
| Item Code | PG80 MK-8-80160-X |

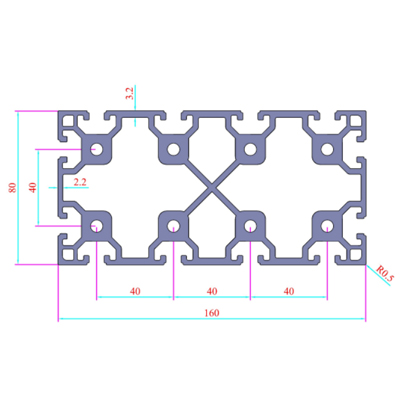

| Description | PG80x160 with 12 slots |
| Material | Aluminum Alloy 6063-T5 |
| Color | Silver |
| सतही उपचार | 0-15μm anodized |
| Moment of Inertia Lx | 240.86 cm⁴ |
| Moment of Inertia Ly | 820.60 cm⁴ |
| Moment of Resistance Wx | 60.22 cm³ |
| Moment of Resistance Wy | 102.58 cm³ |
| Mass | 9.173 kg/m |
| Profile Group | 80 Series |
|
| Item code | PG80 MK-8-80160-X | |
| Description | PG80x160 with 12 slots | |
| Material | Aluminum Alloy 6063-T5 | |
| Color | Silver | |
| Surface treatment | 0-15μm anodized | |
| Moment of inertia Lx | 240.86cm4 | |
| Moment of inertia Ly | 820.60cm4 | |
| Moment of resistance Wx | 60.22cm3 | |
| Moment of resistance Wy | 102.58cm3 | |
| Mass | 9.173kg/m |
