MK-10-4590-X

Product Summary

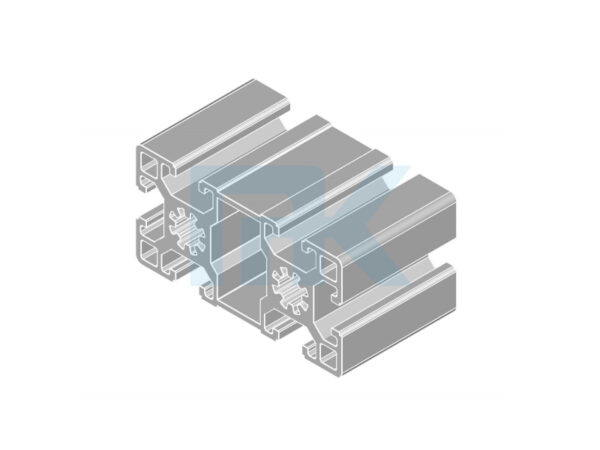

The MK-10-4590-X is a high-strength aluminum profile from our 45 Series, designed for industrial framing and structural applications. As a leading aluminum profile manufacturer, we ensure precision extrusion of Aluminum Alloy 6063-T5, offering excellent corrosion resistance and durability. This profile features a 45x90mm cross-section with 6 T-slots for versatile assembly and modular construction. The silver anodized surface treatment (0-15μm) provides a sleek finish while protecting against wear. With a mass of 3.659kg/m and superior moment of inertia values (Lx: 25.20cm⁴, Ly: 107.46cm⁴), it delivers robust load-bearing capacity for machinery guards, workstations, and automation systems. Its lightweight yet strong design makes it ideal for cost-effective, customizable structures. Choose our MK-10-4590-X for reliable performance in demanding environments.
Key Specifications
Profile Group	45 Series
Item Code	PG45 MK-10-4590-X
素材	Aluminum Alloy 6063-T5

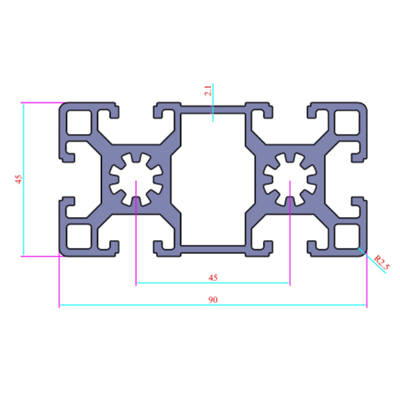

Cross Section	45mm x 90mm (6 slots)
Color	Silver
表面処理	0-15μm Anodized
Moment of Inertia (Lx)	25.20 cm⁴
Moment of Inertia (Ly)	107.46 cm⁴
Moment of Resistance (Wx)	11.20 cm³
Moment of Resistance (Wy)	23.88 cm³
Mass	3.659 kg/m
