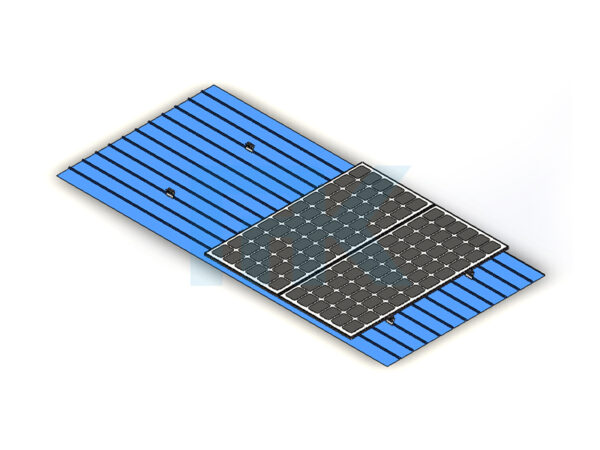

Colorbond Roofing Groove Mounting System
As a leading aluminum profile manufacturer, we present the Colorbond Roofing Groove Mounting System, designed for quick and easy installation on Colorbond roofs. This system offers superior aesthetics and is incredibly lightweight, saving on material costs while providing multi-design solutions for various applications. Engineered for durability, it delivers a pulling force of 1000N and withstands wind loads up to 40 m/s and snow loads of 70 kg/m². Crafted from high-grade aluminum in a natural color, it boasts a service life of 25 years. The system includes specialized clamps (no guide rail clamp, T-type clamp, mid clamp, and end clamp) that ensure secure, angle-relaxation-free mounting, making it ideal for solar panel frames and other rooftop structures.
A1: Yes, our system is specifically engineered for Colorbond roofs. The included clamps are designed to securely grip the unique grooves of Colorbond sheeting, ensuring a stable and reliable installation without damaging the roof. Q2: Can this system be used for both residential and commercial projects?
A2: Absolutely. With its robust pulling force and high wind/snow load ratings, the system is versatile enough for both residential solar arrays and larger commercial frame applications. Our aluminum profiles are manufactured to meet diverse structural demands. Q3: How does the "no guide rail clamp" ensure angle stability?
A3: This specialized clamp eliminates the need for a separate guide rail, directly locking the mounting structure to the roof groove. It prevents angle relaxation by providing a rigid, non-slip connection that maintains the intended tilt and orientation over the system's 25-year lifespan.
Frequently Asked Questions
Q1: Is this mounting system compatible with all Colorbond roof profiles?A1: Yes, our system is specifically engineered for Colorbond roofs. The included clamps are designed to securely grip the unique grooves of Colorbond sheeting, ensuring a stable and reliable installation without damaging the roof. Q2: Can this system be used for both residential and commercial projects?
A2: Absolutely. With its robust pulling force and high wind/snow load ratings, the system is versatile enough for both residential solar arrays and larger commercial frame applications. Our aluminum profiles are manufactured to meet diverse structural demands. Q3: How does the "no guide rail clamp" ensure angle stability?
A3: This specialized clamp eliminates the need for a separate guide rail, directly locking the mounting structure to the roof groove. It prevents angle relaxation by providing a rigid, non-slip connection that maintains the intended tilt and orientation over the system's 25-year lifespan.
| Specification | Details |
| Material | Aluminum (Natural Color) |
| Pulling Force | 1000 N |
| Wind Load Rating | 40 m/s (32.5 kg/m²) |
| Snow Load Rating | 70 kg/m² |
| Service Life | 25 Years |
| Application Type | Frame (Colorbond Roof) |
Pros：
1、Aesthetics
2、Quick and easy
3、Multi design solutions
4、Light weight
5、Material saving
Product statement：
Install location： Colorbond roof
Angled application： Application depends on needs
Pulling force： 1000N
Wind load rating： 40 m/s, 32.5 kg/m2,13
Snow load rating： 70kg/m2
Application type： Frame
Material： Aluminium
Colour： Natural
Service life：25 years

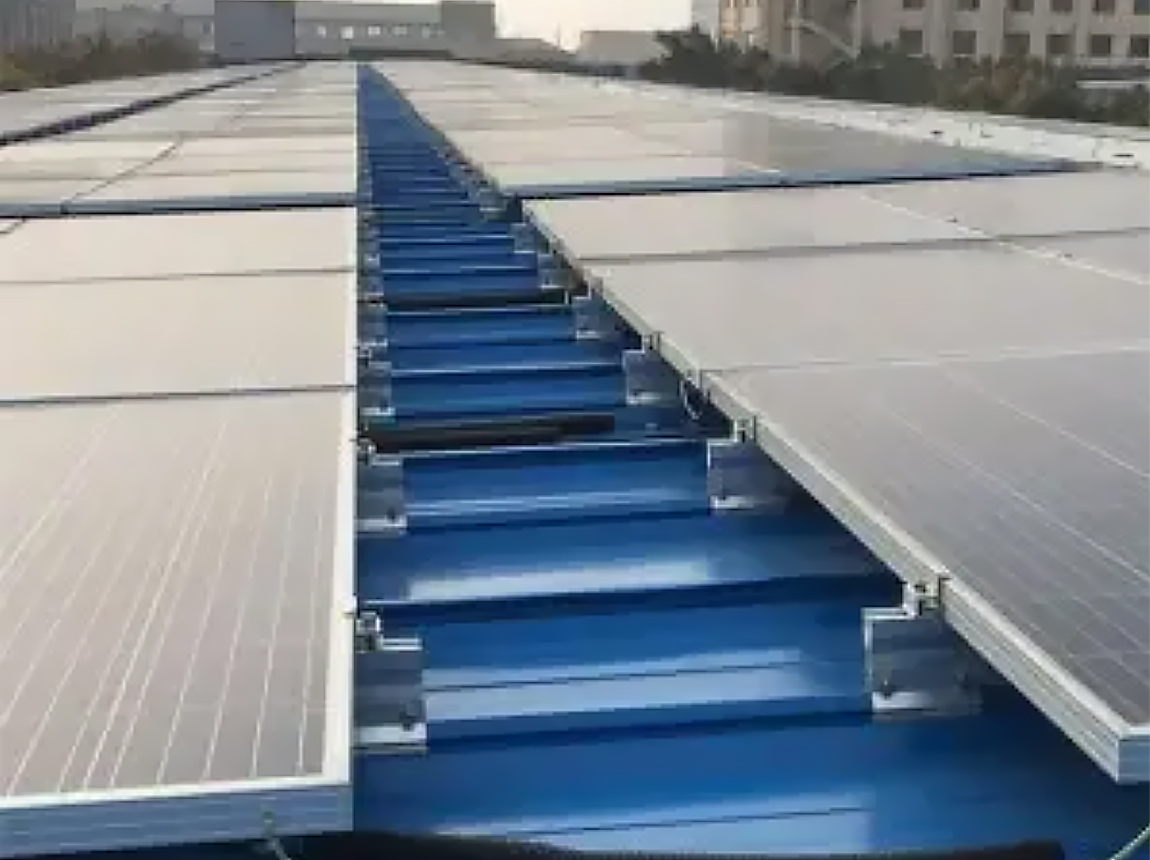

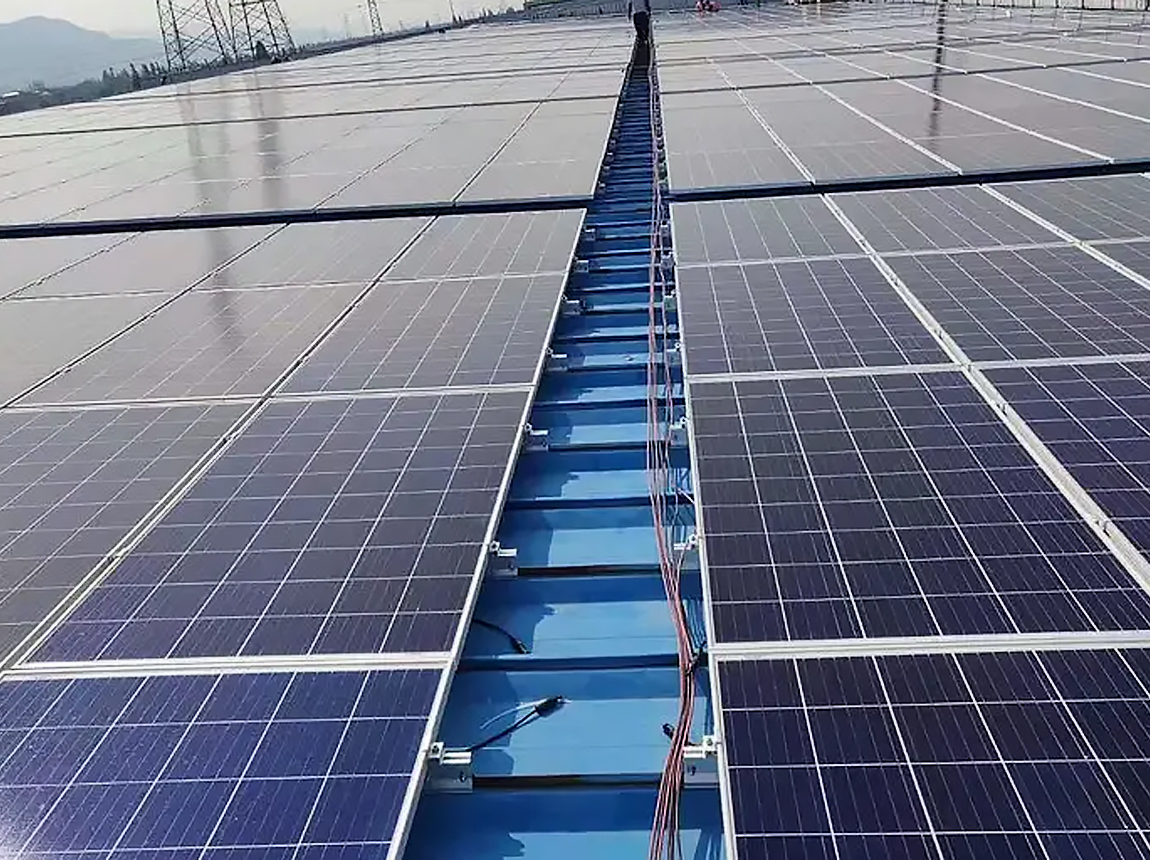

Project example photos
| System is comprised of following parts | |||
 |
 |
 |
 |

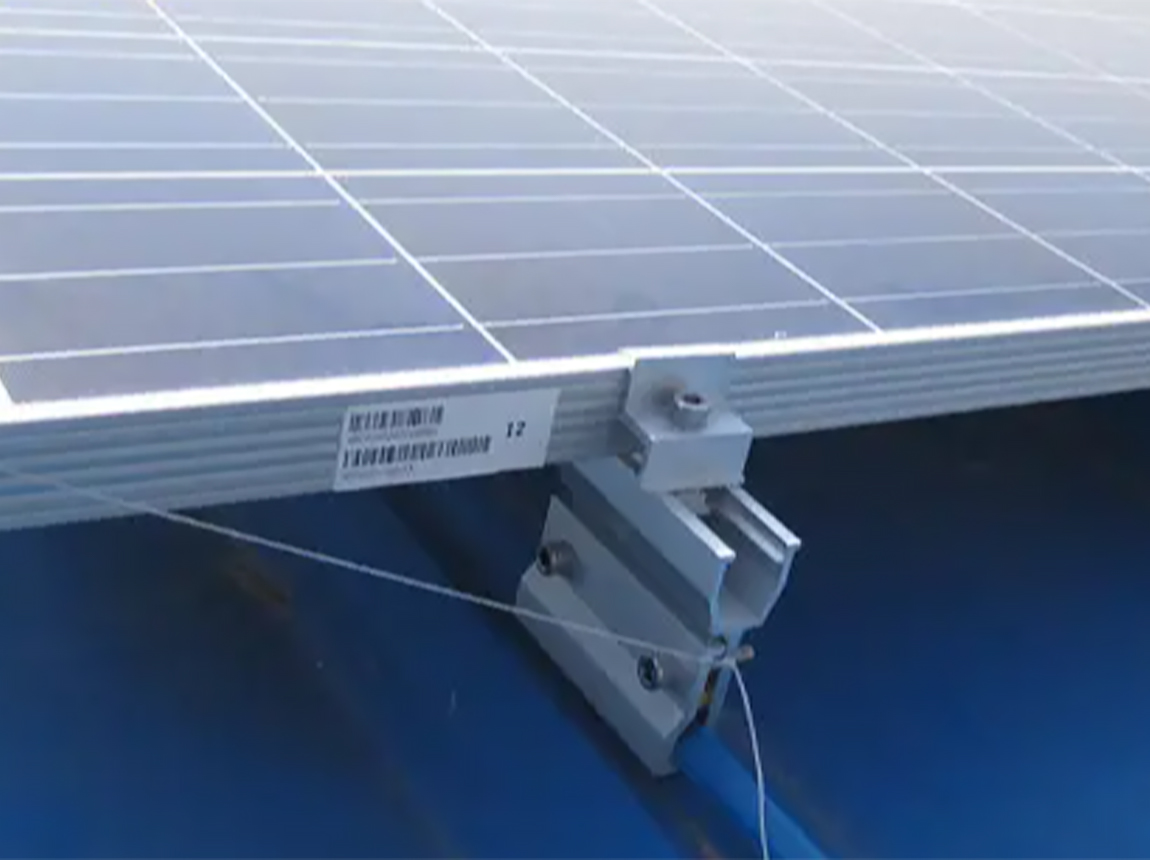

| No guide rail clamp angle relaxation |
T-type clamp without guide rail |
Mid clamp | End clamp |
