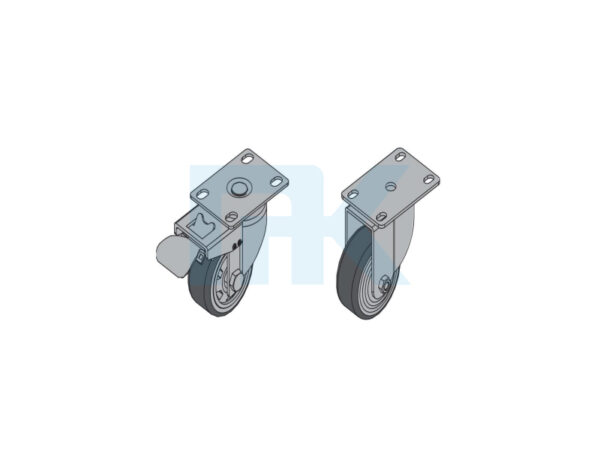

Heavy Duty Plate Castor with Brake for Aluminium Frame Equipment
As a leading aluminum profile manufacturer, we are proud to offer the Heavy Duty Plate Castor with Brake, designed specifically for seamless integration with our T-slot framing systems. This castor features a durable polyurethane (PU) wheel that provides excellent floor protection, high abrasion resistance, and exceptionally quiet rolling performance. Available in four sizes (1.5", 2.0", 2.5", and 3.0" diameters), each model supports substantial loads, ranging from 80kg to 350kg per caster. The integrated total lock brake secures both the wheel and swivel, ensuring your equipment remains stationary when parked. The robust plate mounting design allows for quick, tool-free attachment to aluminum profiles using standard hardware. Engineered for demanding industrial environments, this castor is ideal for mobile workstations, automation equipment, and heavy machinery frames. With its corrosion-resistant finish and 360° swivel capability, it delivers reliable performance and longevity, making it the perfect mobility solution for custom aluminum frame equipment.
Frequently Asked Questions
Q: Is this castor compatible with all MK Aluminum T-slot profiles?
A: Yes, our Heavy Duty Plate Castor is designed as part of the MK Aluminum modular T-slot framing ecosystem. It mounts easily to standard 8mm or 10mm slot profiles using T-slot nuts and bolts, which are sold separately.
Q: How does the brake mechanism work?
A: The castor features a total lock brake that simultaneously locks the wheel from rolling and the swivel from rotating. This provides secure, stationary positioning for your equipment when the brake is engaged, preventing any unintended movement.
Q: What is the load capacity for the 3.0-inch model?
A: The 3.0-inch model (MKFP-PUPC-3.0Inch) has a typical load capacity range of 250–350 kg per caster. For exact engineering specifications and load ratings, please request a technical datasheet from our team.
| Specification | Details |
|---|---|
| Product Name | Heavy Duty Plate Castor with Brake for Aluminium Frame Equipment |
| Product Type | Swivel plate castor with brake (360° rotation) |
| Model Series | MKFP-PUPC |
| Available Models | MKFP-PUPC-1.5Inch / MKFP-PUPC-2.0Inch / MKFP-PUPC-2.5Inch / MKFP-PUPC-3.0Inch |
| Wheel Material | Polyurethane (PU) |
| Mounting Type | Top plate (threaded bolt holes, 4-hole pattern) |
| Swivel Design | Double ball bearing raceway for smooth 360° rotation |
| Brake Type | Total lock brake (locks both wheel and swivel) |
| Primary Application | Heavy-duty industrial aluminium frame equipment |
| Manufacturer | MK Aluminum (Shanghai MK Aluminum Co., Ltd.) |
| Certifications | ISO 9001 |
Available in four wheel diameter sizes—1.5 inch, 2.0 inch, 2.5 inch, and 3.0 inch—the product employs a PU (polyurethane) castor construction, which offers excellent floor protection, high abrasion resistance, and quiet rolling performance. As part of MK Aluminum‘s modular T‑slot framing ecosystem, this heavy‑duty plate castor is designed for applications requiring frequent repositioning combined with secure parking via its brake mechanism.
Key Features
| Feature | Description |
|---|---|
| Heavy‑duty load rating | Engineered for industrial equipment and heavy aluminium frames |
| Plate mounting format | Top plate with standard bolt hole pattern for secure attachment to T‑slot profiles |
| Integrated brake system | Enables reliable stationary locking when equipment is parked |
| PU (polyurethane) wheel | Provides non‑marking floor protection, high wear resistance, and quiet operation |
| Multiple size options | Available in 1.5″, 2.0″, 2.5″, and 3.0″ wheel diameters |
| Industrial construction | Built for durability under demanding manufacturing environments |
| Modular compatibility | Designed for easy integration with MK‘s aluminium profile system |
Key Specifications
| Specification | Details |
|---|---|
| Product Name | Heavy Duty Plate Castor with Brake for Aluminium Frame Equipment |
| Product Type | Swivel plate castor with brake (360° rotation) |
| Model Series | MKFP‑PUPC |
| Available Models | MKFP‑PUPC‑1.5Inch / MKFP‑PUPC‑2.0Inch / MKFP‑PUPC‑2.5Inch / MKFP‑PUPC‑3.0Inch |
| Wheel Material | Polyurethane (PU) |
| Mounting Type | Top plate (threaded bolt holes, 4‑hole pattern) |
| Swivel Design | Double ball bearing raceway for smooth 360° rotation |
| Brake Type | Total lock brake (locks both wheel and swivel) |
| Primary Application | Heavy‑duty industrial aluminium frame equipment |
| Manufacturer | MK Aluminum (Shanghai MK Aluminum Co., Ltd.) |
| Certifications | ISO 9001 |
Model Dimensions & Load Capacities
| Model | Wheel Diameter | Load Capacity (Typical Range*) |
|---|---|---|
| MKFP‑PUPC‑1.5Inch | 1.5 inch (≈38 mm) | 80–120 kg per caster |
| MKFP‑PUPC‑2.0Inch | 2.0 inch (≈50 mm) | 120–180 kg per caster |
| MKFP‑PUPC‑2.5Inch | 2.5 inch (≈63 mm) | 180–250 kg per caster |
| MKFP‑PUPC‑3.0Inch | 3.0 inch (≈75 mm) | 250–350 kg per caster |
Load capacity estimates based on typical heavy‑duty PU plate castor specifications; confirm with MK Aluminum for exact values.
Typical Applications
| Application Area | Use Case |
|---|---|
| Industrial machine frames | Mobile bases for CNC machines, presses, and assembly equipment |
| Heavy workstations | Relocatable workbenches and assembly tables in manufacturing cells |
| Automation equipment | Robotic workcells, automated guided vehicles (AGVs), and conveyor stands |
| Medical equipment | Heavy hospital beds, diagnostic imaging devices, and surgical tables |
| Logistics carts | Heavy‑duty transport carts, racking systems, and material handling equipment |
| Modular enclosures | Mobile safety enclosures and machine guarding systems |
| Display & event structures | Heavy exhibition stands and modular display systems requiring repositioning |
Product Advantages
-
Integrated brake – Provides secure locking capability, preventing unintended equipment movement during operation or parking
-
Plate mounting design – Enables quick, bolted attachment to T‑slot profiles using standard T‑slot nuts and fasteners; no welding required
-
PU wheel construction – Offers non‑marking floor protection suitable for sensitive flooring surfaces (epoxy, polished concrete, tile) while delivering quiet, smooth rolling
-
Heavy‑duty engineering – Built to withstand demanding industrial loads and frequent movement cycles
-
Modular scalability – Can be easily replaced, upgraded, or repositioned as equipment layouts evolve
-
Four size options – Allows designers to match caster capacity and wheel diameter to specific load and floor clearance requirements
-
Corrosion resistant – Zinc‑plated or powder‑coated steel bracket for durability in factory environments
Installation Overview
-
Position the plate castor – Align the top plate mounting holes with the T‑slot profile’s end face.
-
Insert T‑slot nuts or bolts – Slide standard M8 or M10 hardware into the profile‘s T‑slot (compatible with MK 8 mm or 10 mm slot series).
-
Secure the fasteners – Pass bolts through the plate’s mounting holes and tighten to the specified torque.
-
Adjust the brake – Engage/disengage the brake mechanism as needed for stationary vs. mobile operation.
Note: Complete technical specifications (exact load ratings per model, bolt hole dimensions, overall height, and brake design details) are not fully detailed on the product page. For engineering design purposes, request a technical datasheet or CAD file directly from MK Aluminum. Fasteners (T‑slot nuts/bolts) are generally sold separately.
Manufacturer Background
Shanghai MK Aluminum Co., Ltd. has specialised in aluminium extrusion design and production since 2006. The company‘s Dongtai factory covers more than 210 hectares and includes 8 production buildings, with a total building area exceeding 200,000 m². The company’s annual output of aluminium profiles exceeds 60,000 tons, and it offers additional value‑added services including CNC machining, laser cutting, drilling, tapping, welding, and powder coating. MK Aluminum is ISO 9001 certified.

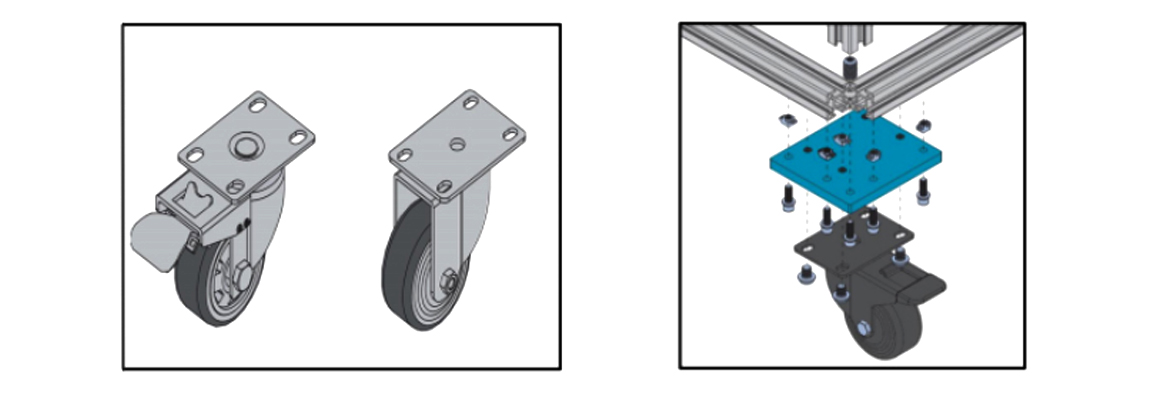

Assembly diagram
| 4 | Material | MKFP-PUPC-1.5Inch MKFP-PUPC-2.0Inch MKFP-PUPC-2.5Inch MKFP-PUPC-3.0Inch |
| Plate castor | PU castor |
